Description:

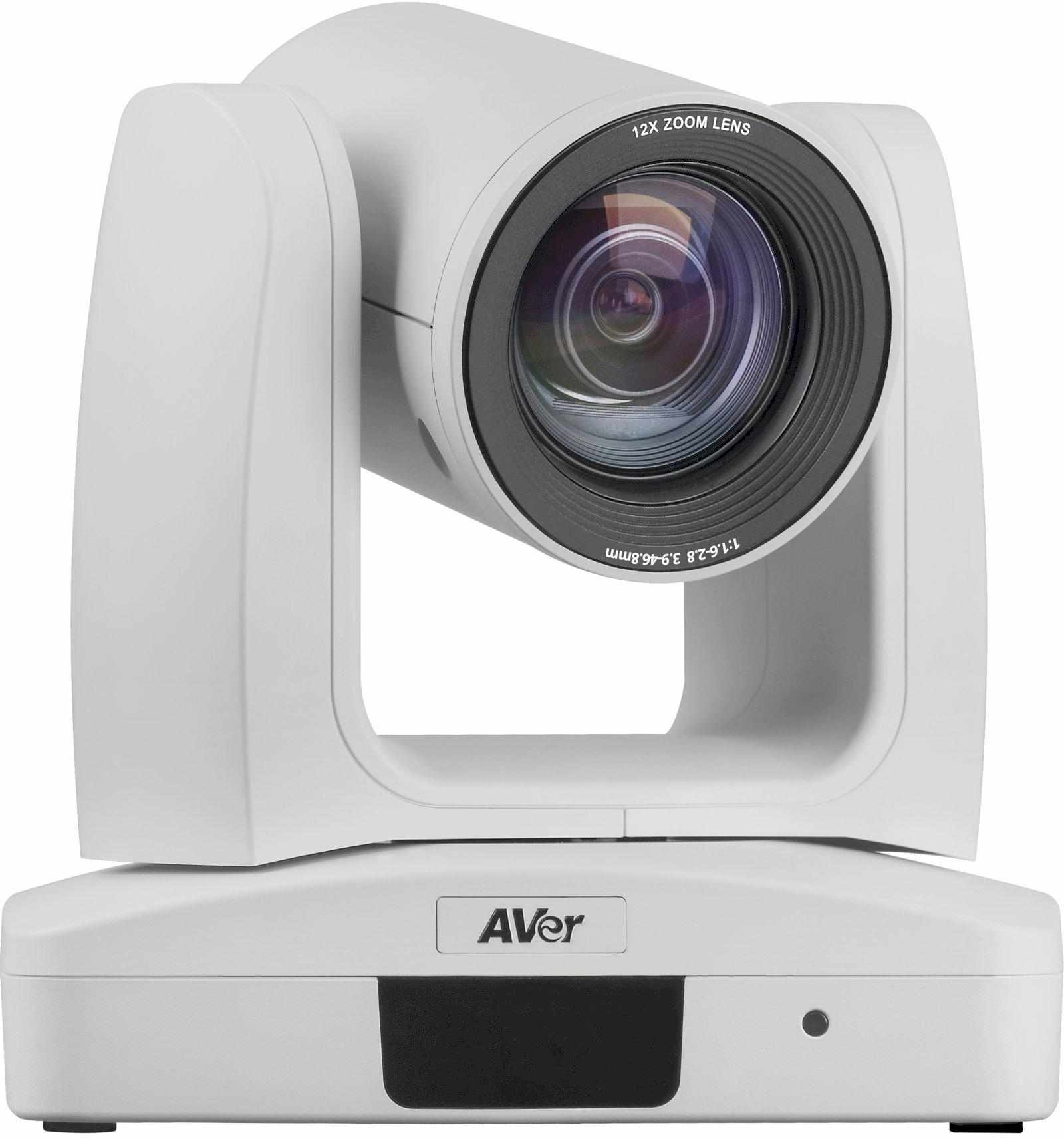

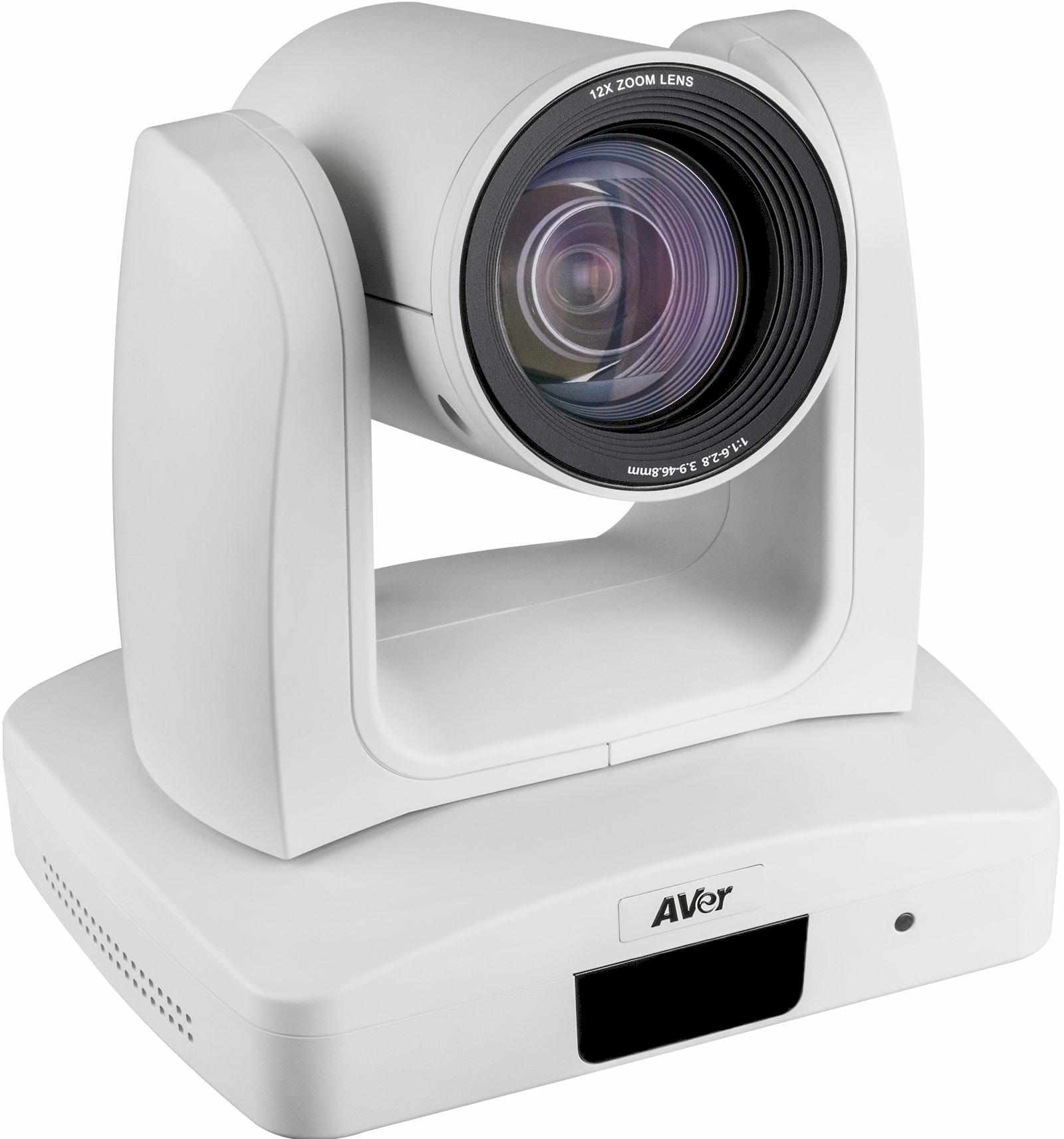

Professional PTZ Camera
The AVer PTZ310 is available in white or grey and equipped with versatile functions to suite every classroom, hospital, or business. Creating the superior video quality, the PTZ310 makes you feel the action in a scene!
12X Optical Zoom
Resounding image quality and a 12X optical zoom enable you to capture crystal-clear footage in any classroom, hall, or activity centre.
Full HD Resolution
The PTZ310 provides outstanding image quality in full HD 1080p at 60fps. It also offers the best auto focus, auto exposure, and auto white balance performance.
Up to 255 Preset Locations
Always be prepared to capture every angle and change the recording view at a moment's notice with up to 255 preset locations through VISCA via RS232 and RS422 functionality, and 10 preset locations through IR remote control.
Stable Motion Control
Fully optimise your recording with customisable speed settings from 0.1°to 200° per second that maximise the agility and precision of pan/tilt rotation motion control.
Seamless Tracking Between Your Preset Zones
AVer SmartShoot optimises your camera controls for automatic and seamless content capturing between your preset areas. With SmartShoot's preset zone tracking you can create an uncompromising multi-camera feel with just one PTZ310 across all your preset zones. Save effort and time, while providing your video with a huge variety of shooting ranges.
Fit Your FOV in Seconds
AVer's new SmartFrame provides you with one-touch face targeting technology to create stunning video content fast. SmartFrame instantly adjusts your FOV to fit everyone on screen at stunning speed so you can start recording presentations, lectures, and more with no hassle. Perfect for capturing multiple people, SmartFrame makes video content capturing easy and enjoyable.
- DATA SHEET
- SIMILAR ARTICLES
- DOCUMENTS
Overview
- Typology:
- Finished product
- Product category:
- Cameras
- Family:
- PTZ Indoor
- Product line:
- Full Hd 1080P
Ports & interfaces
- Ethernet LAN (RJ-45) ports
- 1
- Microphone in
- Yes
- HDMI ports quantity
- 1
- DC-in jack
- Yes
- RS-422 ports
- 1
- 3G-SDI output
- Yes
Weight & dimensions
- Width
- 253 mm
- Depth
- 253 mm
- Height
- 271 mm
- Weight
- 7.42 kg
Packaging data
- Package width
- 275 mm
- Package depth
- 293 mm
- Package height
- 525 mm
- Package weight
- 8.16 kg
Video
- Supported video modes
- 720p, 1080i, 1080p
- Maximum video resolution
- 1920 x 1080 pixels
- HD type
- Full HD
- Maximum frame rate
- 60 fps
- Resolution at capture speed
- 1280x720@50fps, 1280x720@59.94fps, 1280x720@60fps, 1920x1080@25fps, 1920x1080@29.97fps, 1920x1080@50fps, 1920x1080@59.94fps, 1920x1080@60fps
- Video formats supported
- H.264, M-JPEG, YUV
Power
- Power source type
- AC, PoE
Operational conditions
- Operating relative humidity (H-H)
- 20 - 80%
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -20 - 60 °C
- Storage relative humidity (H-H)
- 20 - 95%
Design
- Product colour
- White
- Tilt angle range
- -30 - 90°
- Pan range
- -170 - 170°
- Country of origin
- Taiwan
- Web-based management
- Yes
- Tilt speed (min)
- 0.1 °/sec
- Tilt speed (max)
- 100 °/sec
- Pan speed (min)
- 0.1 °/sec
- Pan speed (max)
- 100 °/sec
Performance
- Cable lock slot
- Yes
- Cable lock slot type
- Kensington
Network
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
- Networking standards
- IEEE 802.3at
- Network streaming
- Yes
- Supported network protocols
- IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, RTP/RTCP, RTSP, VISCA IP
Logistics data
- Harmonised System (HS) code
- 8525890000
- Products per master (outer) case
- 2 pc(s)
- Products per pallet
- 72 pc(s)
Room
- Number of camera presets
- 10
- Megapixels (approx.)
- 2.1 MP
- Sensor type
- CMOS
- Optical sensor size
- 25.4 / 2.8 mm (1 / 2.8")
- Optical zoom
- 12x
- Digital zoom
- 12x
- Focal length range
- 3.9-46.8 mm
- Minimum illumination
- 0.4 lx
- Signal-to-Noise Ratio (SNR)
- 50 dB
- Aperture range (F-F)
- 1.6 - 2.8
- PTZ control
- Yes
- 3D NR (Noise Reduction)
- Yes
- Horizontal field of view (wide)
- 72.5°
- Horizontal field of view (tele)
- 6.3°
- White balance
- Auto, Indoor, Manual, One push, Outdoor
- Gain control type
- Auto/Manual
- Slowest camera shutter speed
- 1 s
- Fastest camera shutter speed
- 1/32000 s
- Auto exposure
- Yes
- Minimum working distance (wide)
- 30 cm
- Maximum working distance (tele)
- 150 cm
